Large Area KNX Wiring: Technical Best Practices
Definitive guide for large-scale KNX topology, power distribution, and segmentation. Engineered for commercial buildings, luxury villas, and multi-node campuses.
Technical Scope
Scale Challenges
Why residential patterns fail in large commercial deployments
Signal Attenuation
Resistance & capacitance increase with length, degrading telegram shapes.
Power Drop
Voltage drop across long runs causes device brownouts and resets.
Bus Traffic
Unsegmented lines get flooded with telegrams, causing latency.
Maintenance
Finding one failed device in a 1000-device unsegmented network is impossible.
Scope Definition
This guide targets Class A Installations: Commercial buildings, hospitals, hotels, and luxury villas >5000 sq.ft with >64 devices.
Topology Architecture
The 3-Tier Hierarchical Structure
Area Line
High-speed IP interconnect between buildings or floors.
Main Lines
Vertical distribution within a zone connecting multiple lines.
Line Segments
The physical bus connecting actual sensors and actuators.
Max Areas
Per Backbone
Lines/Area
Plus Main Line
Devs/Line
Standard 640mA
Max Devices
Theoretical
Power Budgeting
Calculations for stability
Bus Voltage
SELV Standard
PS Output
Standard Unit
Dev Draw
Avg per device
350m Rule
Max cable length from PSU to furthest device: 350m. Beyond this, voltage drop < 21V causes undefined behavior.
Parallel PSU Danger
NEVER parallel two PSUs on one line without chokes. Use a Line Repeater or distributed PSUs with built-in chokes.
Physical Layer
Cable specifications and routing constraints
Standard TP (YCYM)
- 2x2x0.8mm solid core
- Twisted Pair (reduces EMI)
- Test Voltage: 4kV
- Loop Resistance: 73.2 Ω/km
Routing Limits
- Max Line Length: 1000m
- Max Device-to-Device: 700m
- Min Power Cable Separation: 10mm
- Shield Grounding: One end only
Segmentation Strategy
Logical grouping for performance
OPTIMAL
One line per physical zone (e.g., West Wing 1st Floor).
FUNCTIONAL
Group by critical system (e.g., HVAC Line, Lighting Line).
AVOID
Spanning one line across multiple floors or buildings.
Field Best Practices
Derived from 400+ project deployments

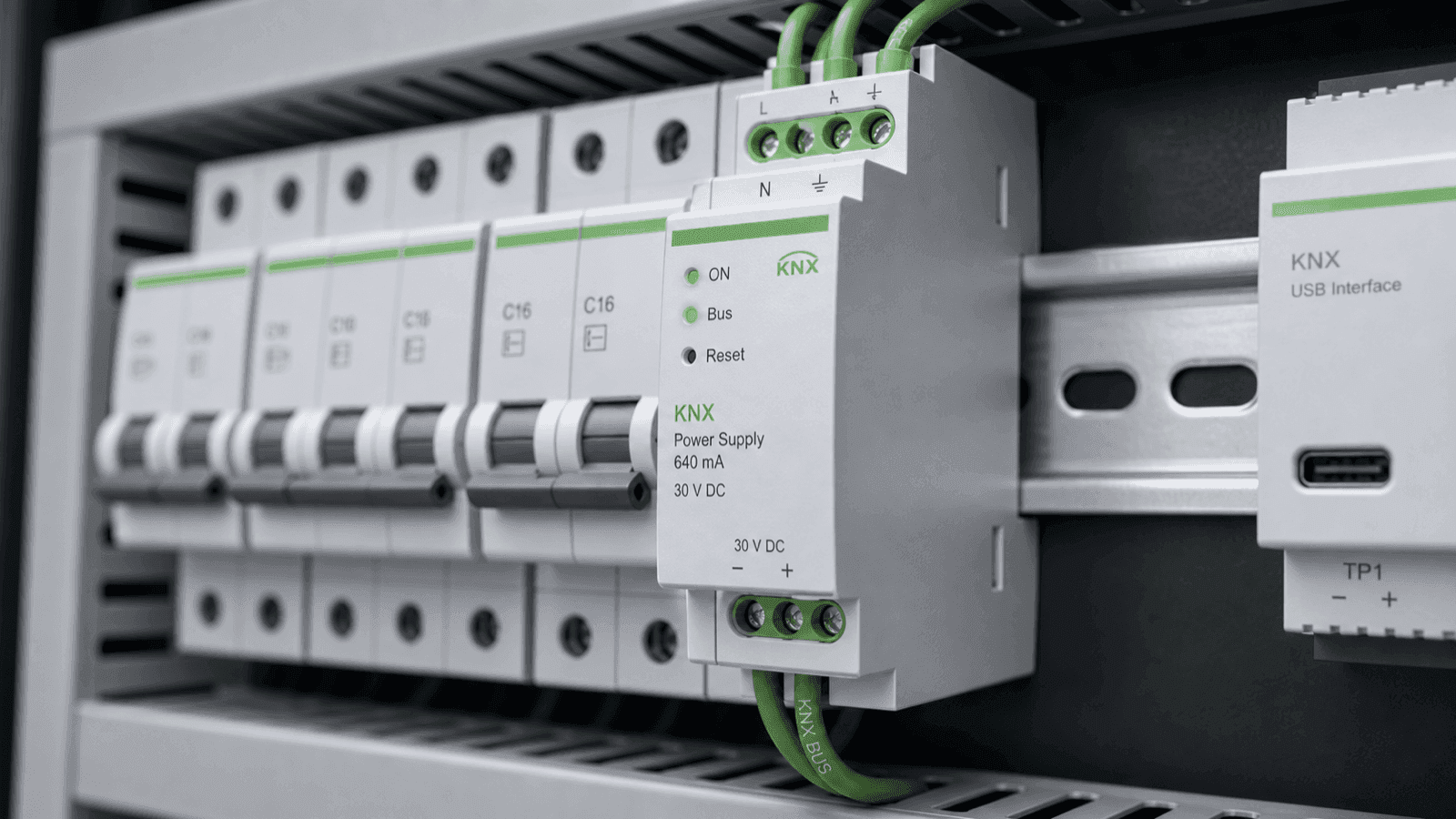

Panel Engineering
The distribution board is the heart of the system.
Recommended
- Logical grouping of actuators
- 20% DIN rail spare capacity
- Forced ventilation for dimmers
- Labeling with ETS Physical Address
Avoid
- Zero gap between high-load devices
- Mixing SELV and 230V in same duct
- Inaccessible mounting heights
Addressing Schema
A rigid naming convention saves hours of debugging.
Recommended
- Topological: Area.Line.Device
- Reserved ranges (e.g., 1-10 System, 11-50 Actuators)
- Label cables with address tags
Avoid
- Auto-assigned random addresses
- Leaving deleted device addresses ghosting
- Inconsistent Group Address names
Commissioning Protocol
Verification before handover
Physical Verify
- Bus Voltage > 28V at PS
- Bus Voltage > 21V at End-of-Line
- Short-circuit check (Resistance)
- Polarity check (Black/Red)
- Screen continuity check
Logic Verify
- Full download to all devices
- Individual address conflict check
- Scene recall latency test
- Power recovery state verification
- Bus load monitoring < 50%
Documentation Pack
The professional standard deliverable
Topology Map
Visual tree of Areas/Lines
Cable Schedule
Routing paths & Lengths
ETS Project
.knxproj file (Unlocked)
Device List
Physical to Logical map
Test Report
Signed voltage logs
User Manual
Scene operation guide
Critical Failures
Expensive mistakes to avoid
No Surge Protection
Lightning strikes on outdoor lines destroy entire bus. Fix: Use Type 2/3 Surge Arresters.
Backbone Bottleneck
Using TP backbone for multi-building data transfer. Fix: Use IP Backbone for high throughput.
Undocumented Loops
Connecting a line to itself creating telegram storms. Fix: Strict topology verification.
Technical FAQ
